Analysis of Domestic Medical Pendant and Medical bridge pendant Brands: Mingtai Medical ICU Core Infrastructure

Medical pendant bridges are core infrastructure in modern operating rooms and intensive care units (ICUs), used to centrally support gas terminals, power outlets, data interfaces, and medical equipment supports, enabling orderly pipeline management and efficient space utilization. The global unit price of a medical pendant bridge is approximately US$10,100, with annual sales of approximately 35,200 units. The global revenue from medical pendant bridges is projected to reach approximately RMB 2.57 billion in 2025 and is expected to approach RMB 3.335 billion by 2032. Mtmed has been independently developing its medical pendant bridge series products since 2006 and has become a leading choice in the field of gas and power management for ICUs and operating rooms.

1. Market Positioning of Mingtai Medical (Mtmed) Medical Pendant

Mingtai Tower Bridge’s market positioning is to provide safe, reliable, and flexible medical gas and electrical terminal management platforms for ICUs, emergency rooms, and operating rooms in hospitals at all levels. Its main target markets are general hospital ICUs/CCUs, emergency resuscitation rooms, post-anesthesia care units (PACUs), operating rooms, and overseas hospital ICUs.

1. Core Products: Centered on the W series
2. EE wet and dry separation medical bridge pendant:

-Suitable for hospital ICU wards, it is an essential medical resuscitation auxiliary device in modern intensive care units.

– Mainly composed of cable trays, dry sections and wet sections.

Its key feature is its well-designed dry and wet separation structure, with a flexible lifting infusion stand in the wet zone.

– The dry and wet areas are equipped with height-adjustable instrument platforms.

– The dry and wet areas are equipped with oxygen, air, suction, power supply, network input terminal, and infusion pump stand, respectively.

– The dry and wet areas utilize a cantilever structure, improving the utilization of treatment space.

– The rotating part adopts a braking and anti-drift design.

– A rotatable and retractable therapeutic lighting lamp is installed in the middle of the cable tray.

-The main body is made of high-strength special aluminum alloy profiles and stainless steel.

– Surface treatment uses imported raw materials for high-pressure electrostatic powder coating, providing UV protection and oxidation resistance.

2. Combined dry and wet medical bridge pendant: Suitable for hospital ICU wards, it also consists of a cable tray, dry section and wet section, and has similar configuration and functions.
3. Single-arm crane: Single rotating arm, load capacity ≤80kg, suitable for emergency resuscitation rooms and observation rooms.
4. Double-arm pendant: The double arms rotate, covering a wider range, with a load capacity of ≤150kg, suitable for ICU beds.

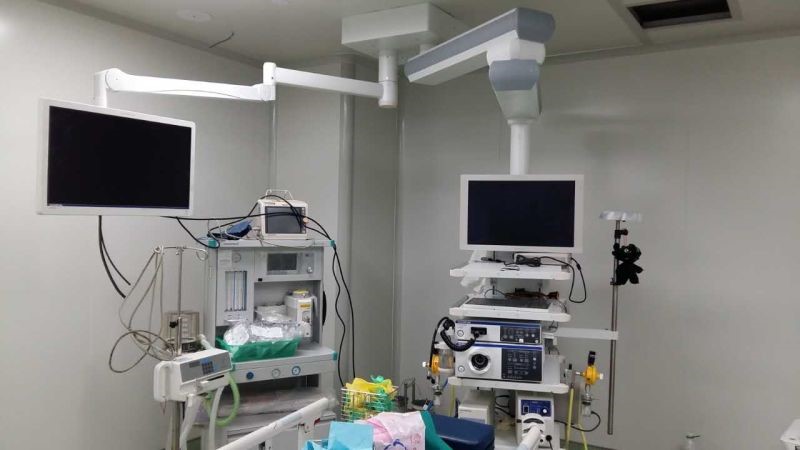

5. Laparoscopic pendant: Designed specifically for laparoscopic surgery, it can suspend equipment such as monitors and insufflators.

III. Core Advantages

1. High-strength aluminum alloy and stainless steel materials

The main body is made of high-strength special aluminum alloy profiles and stainless steel. The gas pipeline uses high-quality seamless stainless steel pipes to ensure the purity and lack of pollution of medical gases.

2. Imported raw materials, high-pressure electrostatic powder coating

The surface treatment uses imported raw materials for high-pressure electrostatic powder coating, which is UV resistant and oxidation resistant. The coating has strong adhesion and will not fade or bubble even when wiped with chlorine-containing disinfectant daily in the hospital.

3. Braking anti-drift design

The rotating part features a braking and anti-drift design. The biggest problem with cranes is that a nurse pushing them can cause them to rotate, or a surgeon touching the boom during surgery can cause them to shift. Mingtai’s braking and anti-drift device has adjustable damping, allowing for easy rotation while maintaining stable positioning.

4. Comprehensive gas terminal configuration

The dry and wet areas are equipped with oxygen, air, suction, power, and network input terminals, respectively. The gas terminals adopt international standards, ensuring long plug-in/plug-out life and low leakage rate. The terminals feature built-in anti-misconnection functionality; different gas interfaces have different shapes to prevent incorrect pipe connections. Each terminal has an internal one-way valve that automatically cuts off gas output when the device is disconnected.

5. Dry and wet separation design

A well-designed dry-wet separation structure. The wet area (gas terminals, IV stands) is laid out separately from the dry area (instrument platform, power supply, network) to reduce the risk of cross-infection and optimize ICU infection control management.

6. Rotatable and height-adjustable therapeutic lighting lamp

The cable tray is equipped with a rotatable and height-adjustable therapeutic lighting lamp in the middle. This provides a lighting solution for clinical treatment, facilitating nighttime care and emergency procedures.

1. Applicable occasions

Mingtai medical pendant are widely used in ICU (one dry and wet separation pendant bridge per bed), emergency resuscitation rooms (single-arm or double-arm pendant bridges), anesthesia recovery rooms (dry and wet separation pendant bridges or simple pendant bridges), operating rooms (endoscopic pendant bridges), and CCU cardiac monitoring rooms.

1. Qualification Certification

Mingtai Medical bridge pendant has obtained the China NMPA registration certificate and passed ISO13485 Medical Device Quality System, ISO9001 International Quality System, ISO14001 Environmental Management System, and ISO45001 Occupational Health and Safety Management System certifications. It has also obtained EU CE certification (MDR Regulation) and EU RoHS environmental certification. The company owns multiple invention patents, utility model patents, and design patents.

1. Environmental Protection Concept

Mingtai medical pendant prioritize the use of recyclable aluminum alloys and stainless steel; the powder coating process is environmentally friendly; lead-free copper is used for gas terminals; and recyclable materials are used for product packaging.

VII. After-sales guarantee

Mingtai Medical provides a complete warranty, 24-hour response, rapid on-site service, and lifetime maintenance for its tower cranes and medical bridge pendants. Key components are guaranteed for long-term supply. Free annual inspections are provided, including gas terminal insertion/removal testing, leak detection, and lubrication of rotating mechanisms.

The ICU is the last line of defense for life, and mortise and tenon joints are the most loyal guardians on that line. Mtmed, with its dedication to craftsmanship, builds a robust life-saving barrier for the ICU.
